Description
Features
Specifications

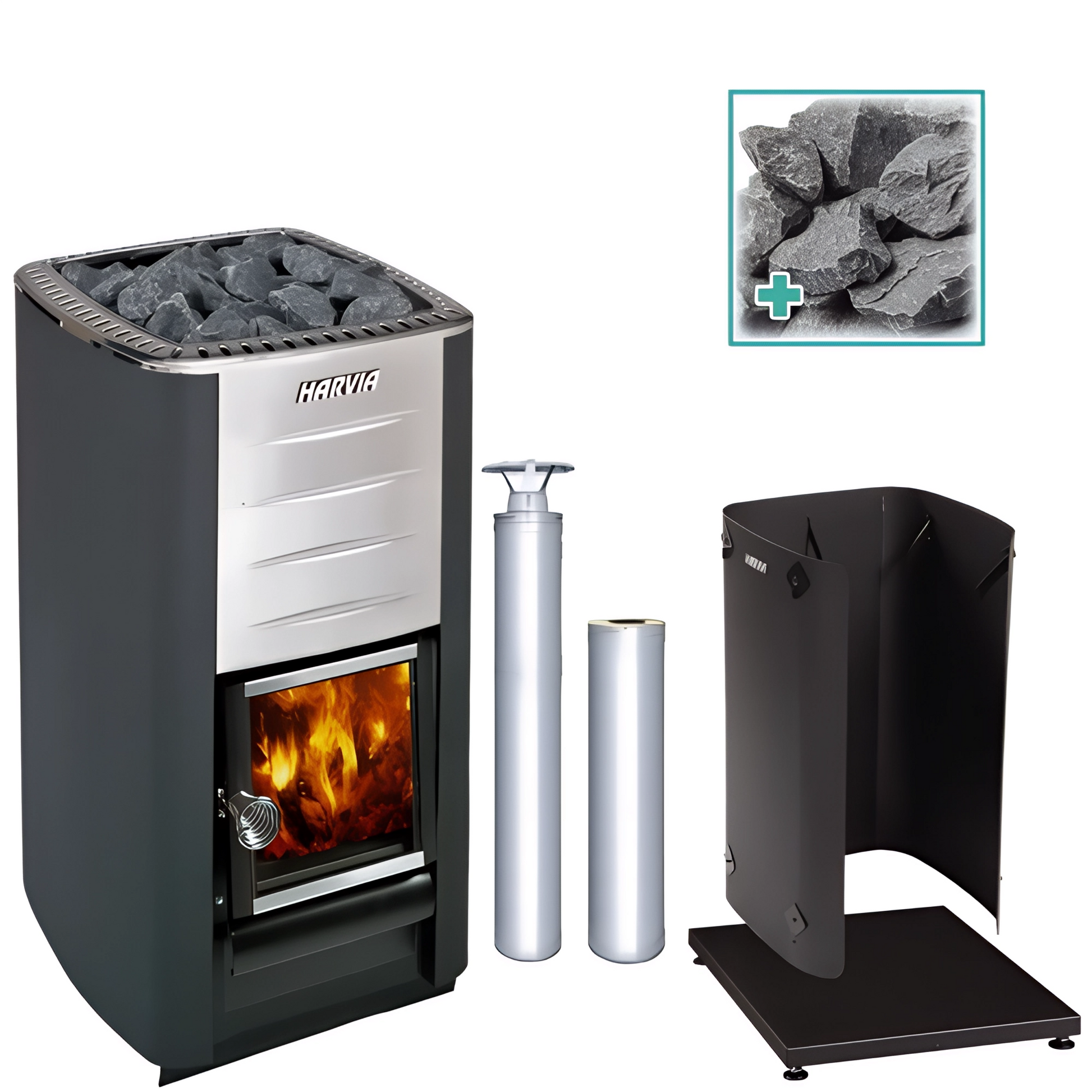

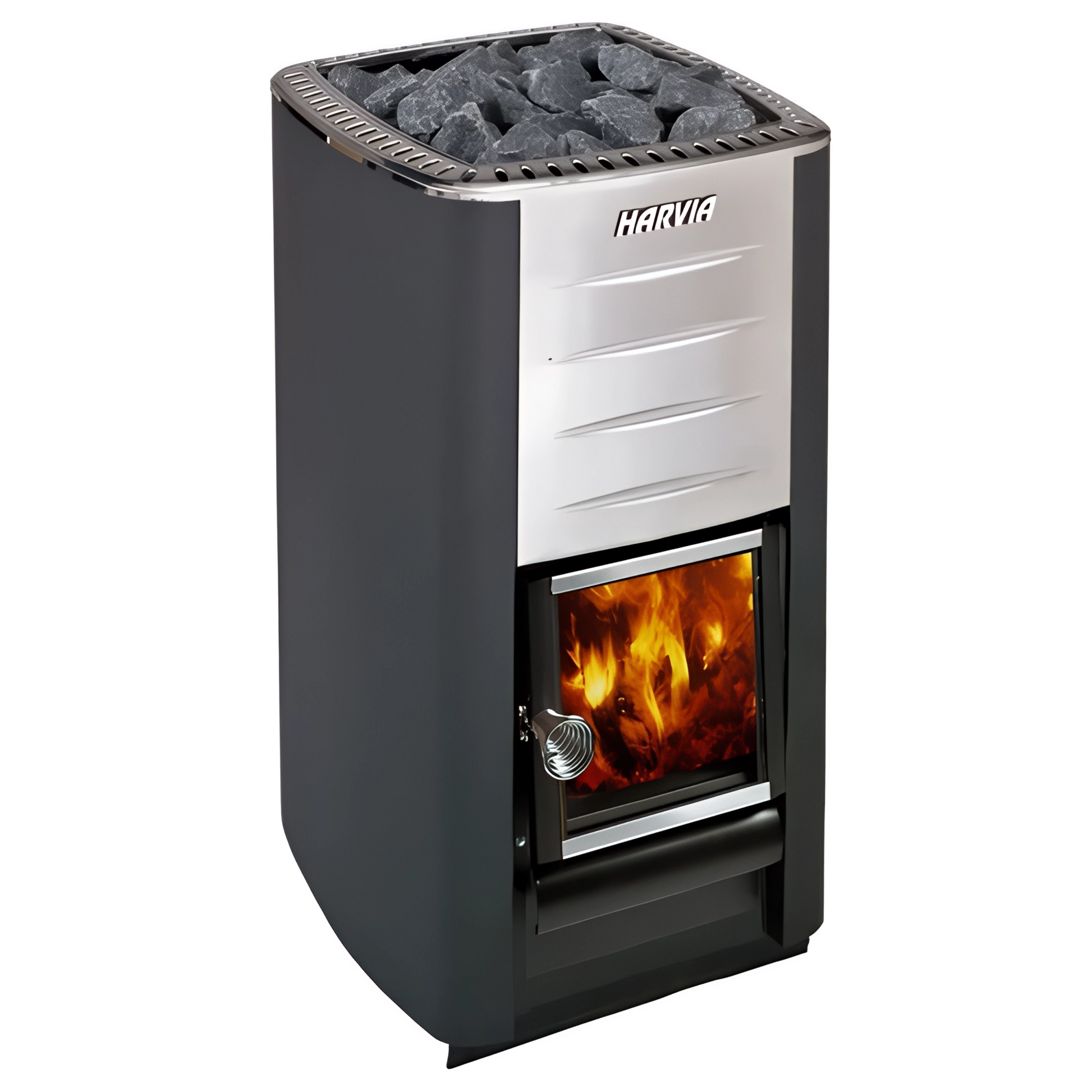

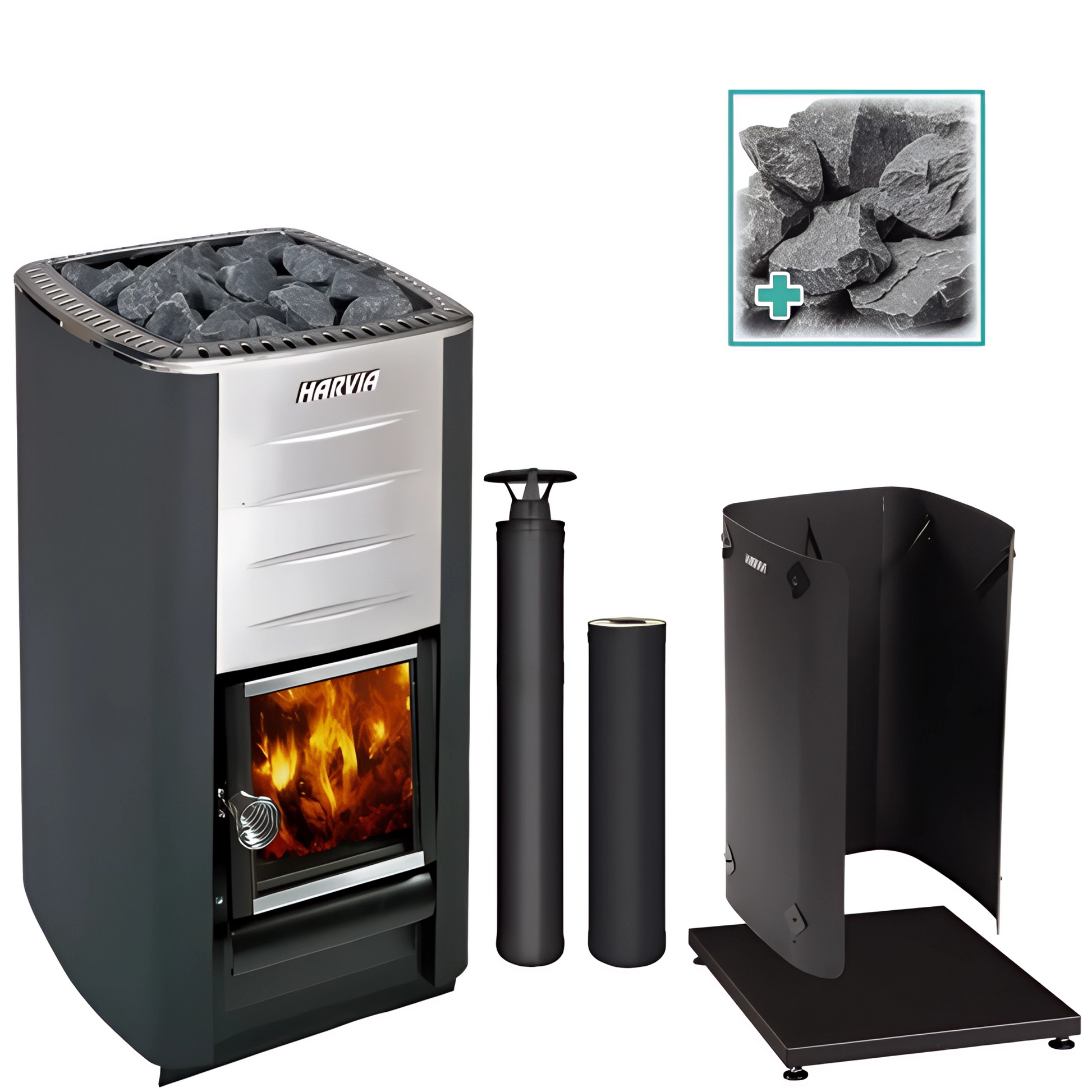

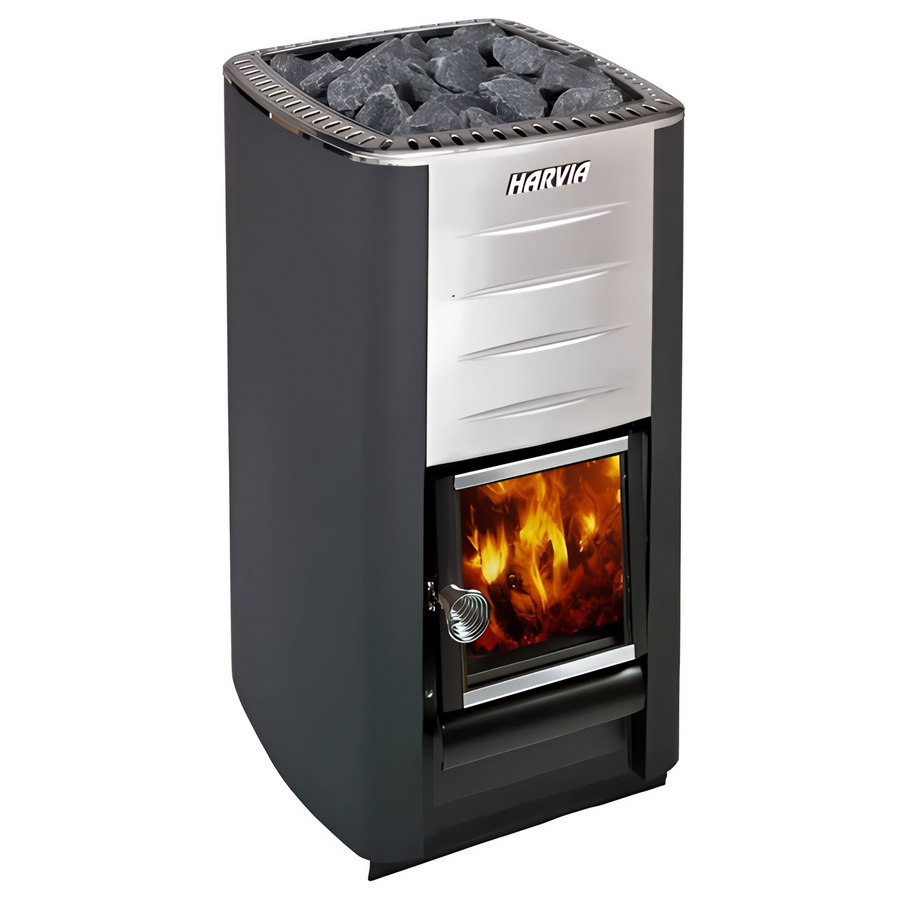

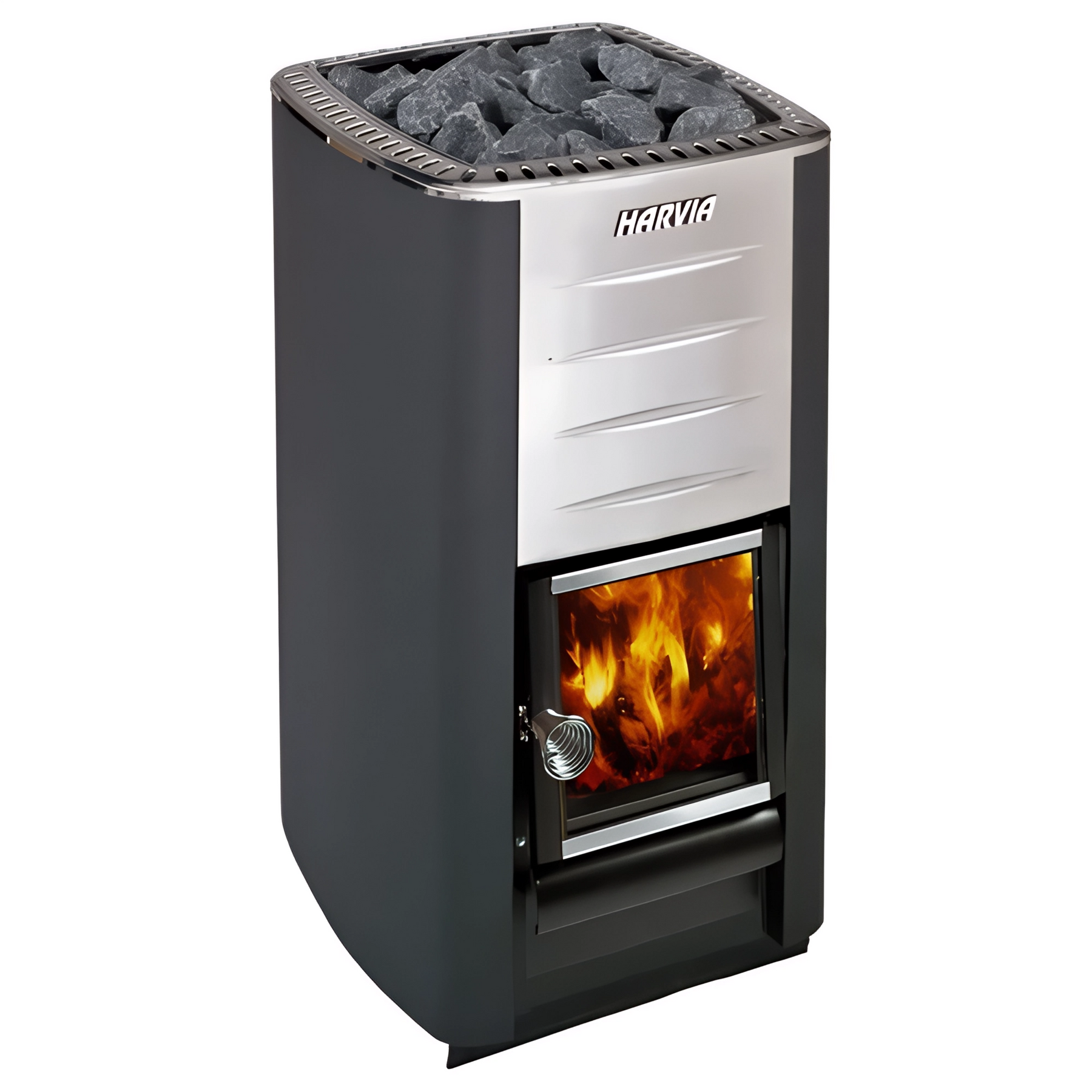

M3 Sauna Stove
- Wood-burning
- 16.5kW
- Elegant graphite black
- Stainless steel air-flow spoiler
- Floor installation
- Designed, engineered, and made in Finland
- For sauna rooms from 212 to 459 cu. ft.
- 66 pound stone capacity
- Dimensions: 15.4"W (39 cm) x 16.9"D (43 cm) x 28.15"H (72 cm)
- Limited 2-year warranty (consumer use) and limited 6-month warranty (commercial use)

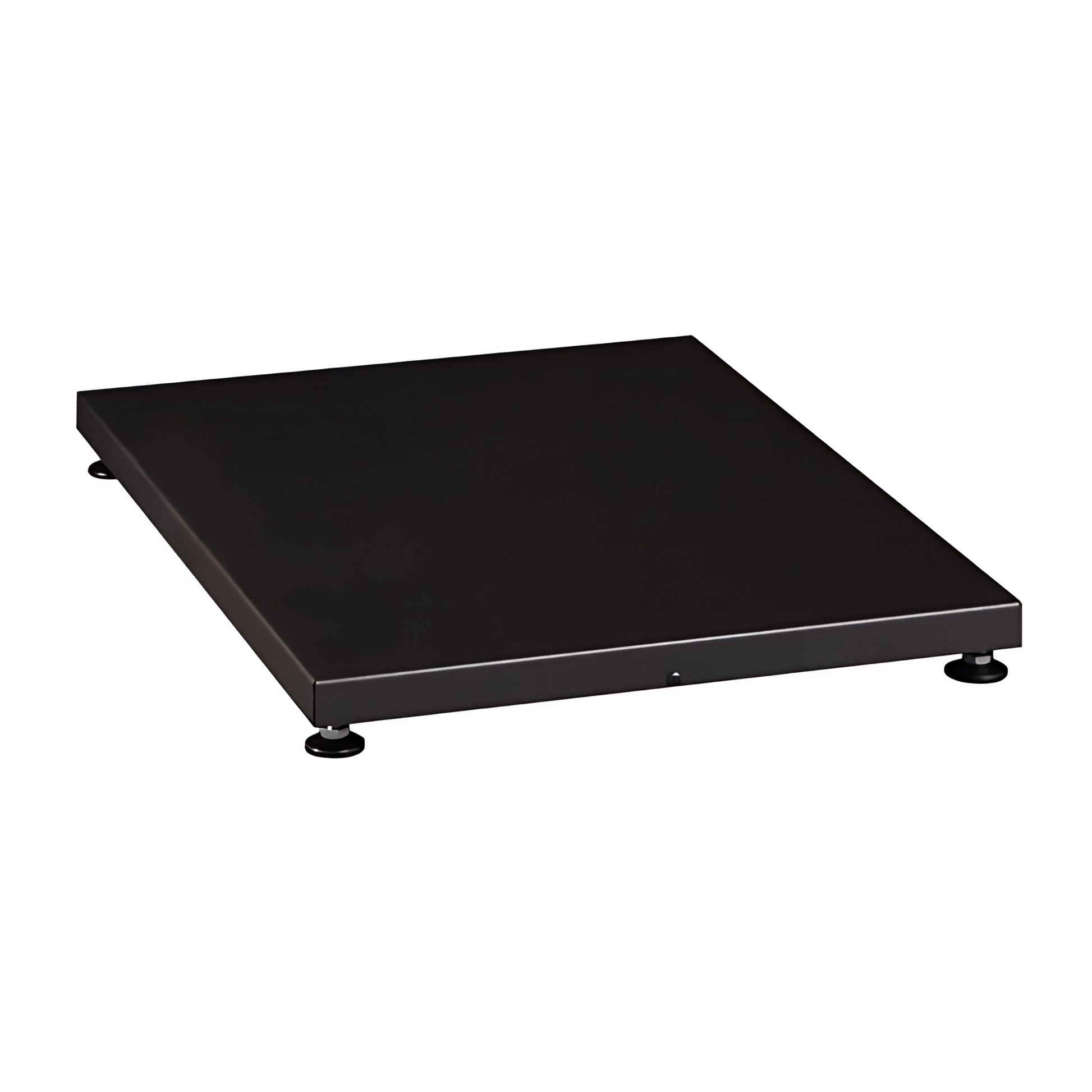

Protective Bedding
- Black aluminum-zinc coated steel
- Helps protect floors
- Adjustable feet
- Can be installed on a sloping floor
- For wood-burning sauna stoves
- Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm)
- Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

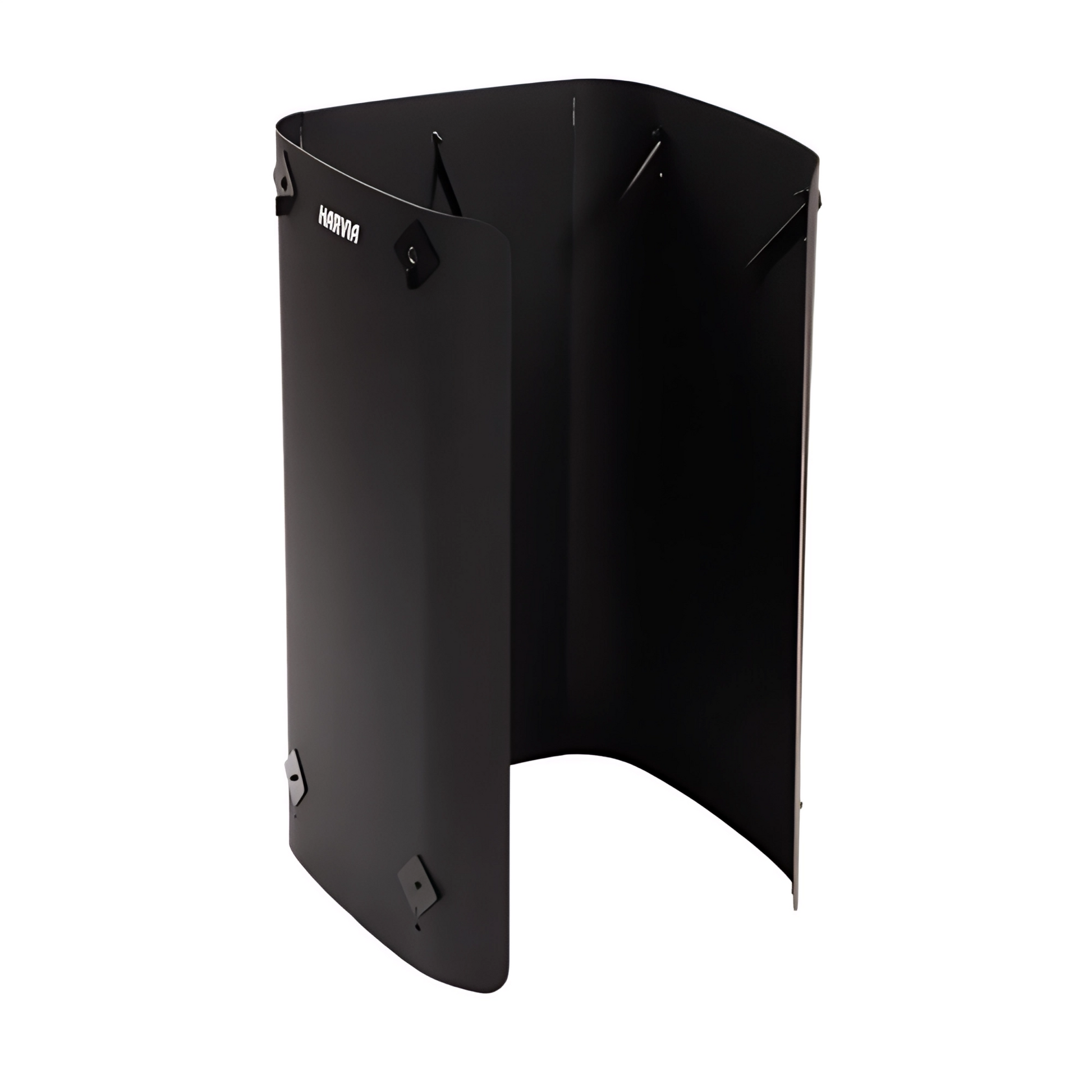

Protective Sheath
- Black steel
- 3-sided sheath
- Reduces safety distance to combustible materials
- Dimensions: 17.9"W (46 cm) x 19.3"D (49 cm) x 31.5"H (80 cm)
- Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

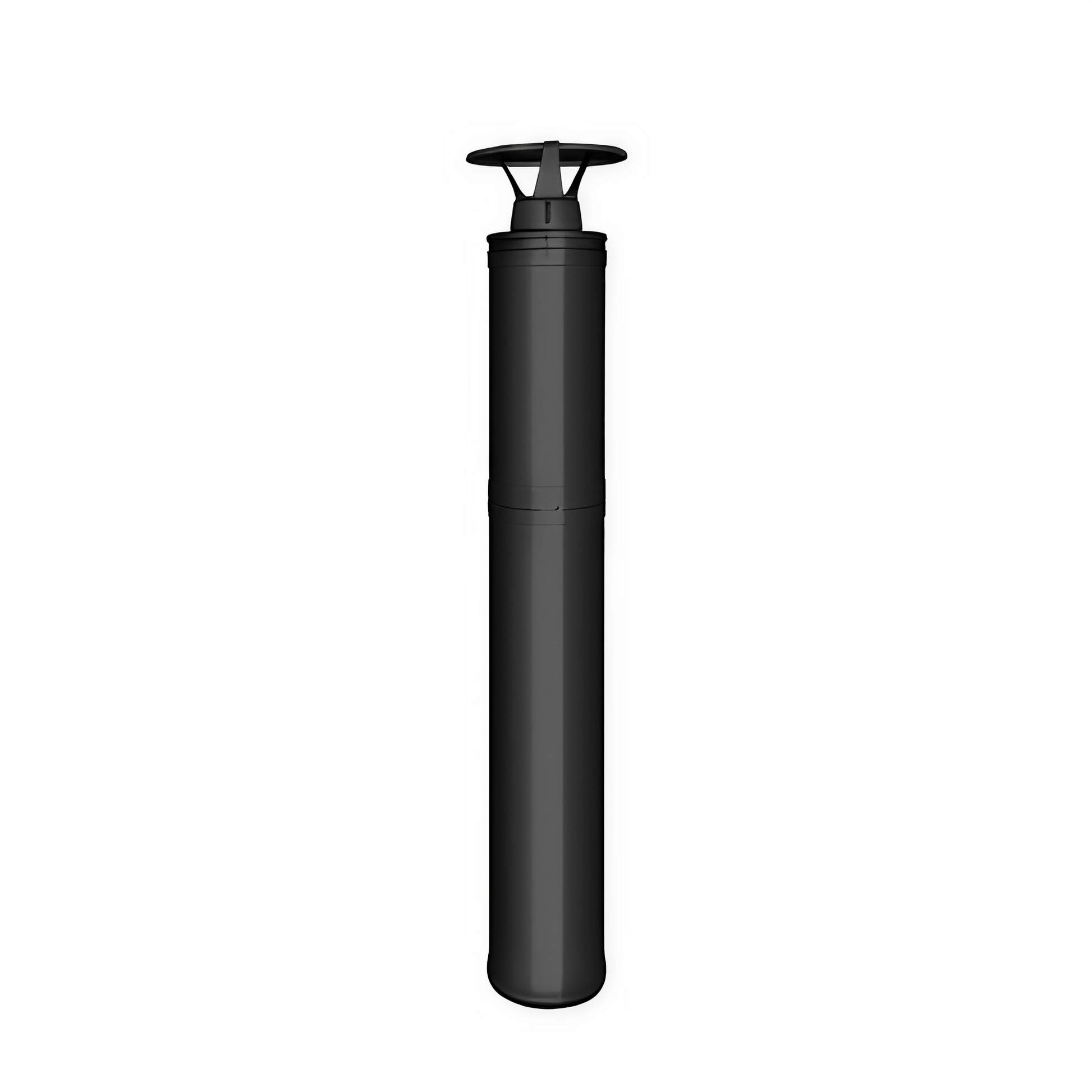

Chimney Kit
- Black powder-coated steel
- CE marking
- Mineral wool insulation material
- Mounts in vertical position
- Able to be easily extended
- Touch protection not needed if installed in a sauna
- Soot fire resistant
- Freeze thaw resistant
- Works with wood-burning sauna stoves
- Works with smaller fireplaces
- Works with iron stoves
- Designed, engineered, and made in Finland
- Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm)
- Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)
Chimney Extension
- Black powder-coated steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm)
- Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

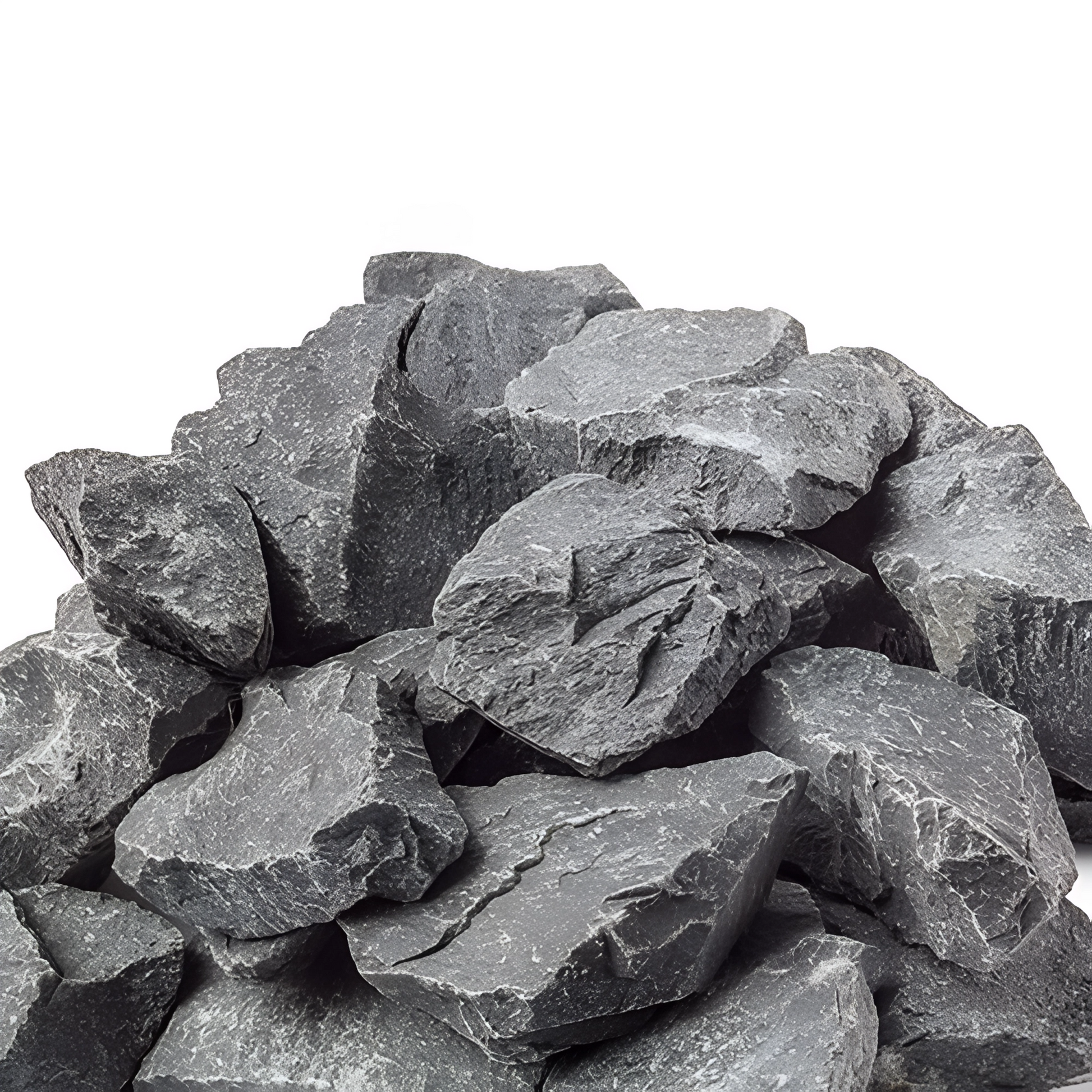

Sauna Stones
- Olivine diabase sauna stones
- Split-face shape
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
M3 Sauna Stove
- Sauna Stove
- Stove Door
- Ash Box
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 6-Month Limited Warranty (Commercial Use)
Protective Bedding
- Small Protective Bedding
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Protective Sheath
- Protective Sheath Panel
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Chimney Kit
- Chimney
- Utility Box
- Non-Insulated Smoke Pipe
- Rain Cap
- Rubber Rain Flange
- Installation Set for Rain Flange
- Stainless Steel Lead-Through Flange for Ceiling
- Lead-Through Insulation and Protector
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Chimney Extension
- 1000mm Chimney Extension
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
- 88 lbs of 4" to 6" (10-15 cm) Split-Face Stones
Model | M3 BK PKG |
Model | M3 |
Kilowatt Rating | 16.5kW |
Primary Fuel | Wood |
Maximum Firewood Length | 14" (35 cm) |
Diameter of Firewood | 3-6" (8-15 cm) |
Minimum Cubic Feet | 212 cu. ft. |
Maximum Cubic Feet | 459 cu. ft. |
Minimum Room Height | 47" (120 cm) |
Flue Connection Location | Top and Back |
Heater Weight | 99 lbs (45 kg) |
Shipping Weight with Sauna Stones | 165 lbs (75 kg) |
Width | 15.4" (39 cm) |
Depth | 16.9" (43 cm) |
Height | 28.15"H (72 cm) |
Model | WL100 |
Construction Material | Stainless Steel |
Color | Black |
Weight | 23.6 lbs (11 kg) |
Width | 18.5" (47 cm) |
Depth | 26.2" (67 cm) |
Height | 2.4"-3"H (6-8 cm) |
Model | WL450 |
Construction Material | Stainless Steel |
Color | Black |
Weight | 15.4 lbs (7 kg) |
Width | 17.9" (46 cm) |
Depth | 19.3" (49 cm) |
Height | 31.5" (80 cm) |
Model | WHP1500M |
Construction Material | Stainless Steel |
Color | Black |
Non-Vertical Installations | Not Allowed |
Weight | 24.9 lbs (11 kg) |
Width | 8.7" (22 cm) |
Depth | 8.7" (22 cm) |
Height | 59.1" (150 cm) |
Model | WHP1000M |
Construction Material | Stainless Steel |
Color | Black |
Non-Vertical Installations | Not Allowed |
Wind Load | 6.5 ft (2m) Above Last Support |
Flexural Strength-Tensile Strength | 16.4 ft (5m) |
Maximum Spacing of Lateral Supports | 9.8 ft (3m) |
Weight | 14.8 lbs (7 kg) |
Width | 8.7" (22 cm) |
Depth | 8.7" (22 cm) |
Height | 39.4" (100 cm) |
