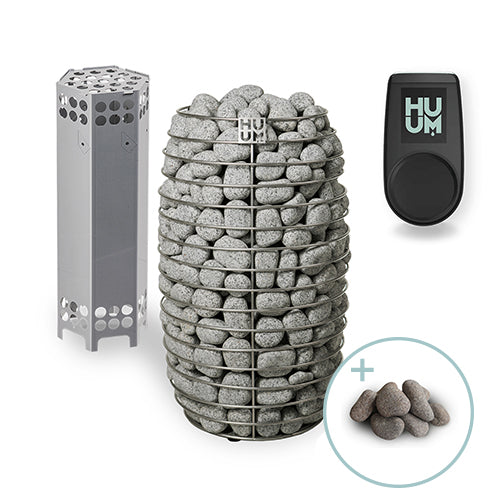

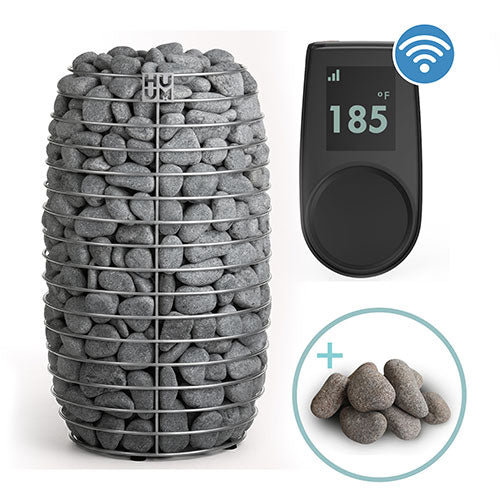

This HUUM Hive Mini sauna heater package comes complete with the slimmer designed HIVE Mini 10.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 706 cubic feet (CF).
FEATURES:

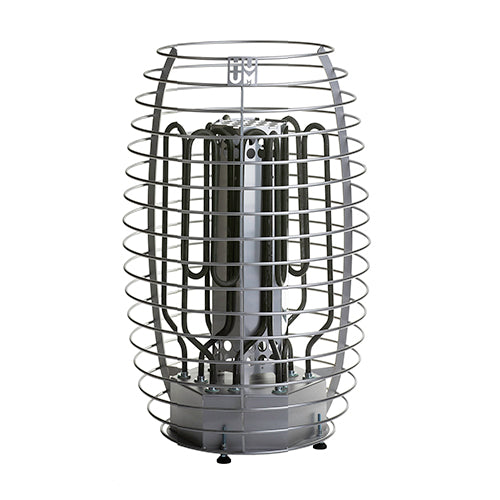

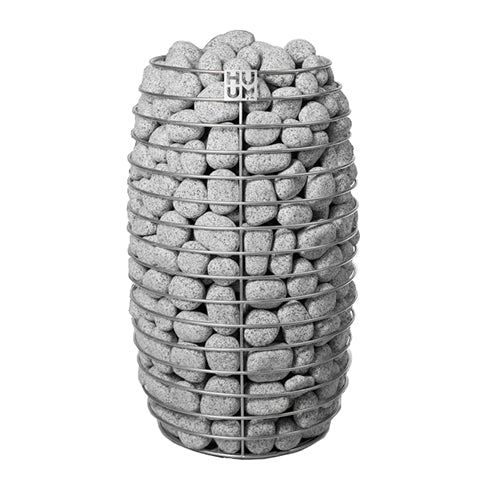

HIVE Mini 10.5kW Sauna Heater
- Elegant design
- 240V/1PH operation
- For sauna rooms from 353 to 706 cu. ft.
- 330 pound stone capacity
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 18.1" Diameter (460mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)
UKU
- Sleek Black control display panel
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room

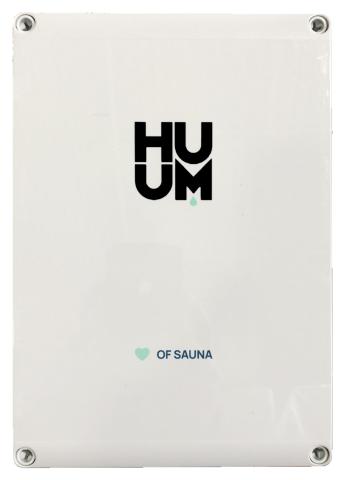

- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

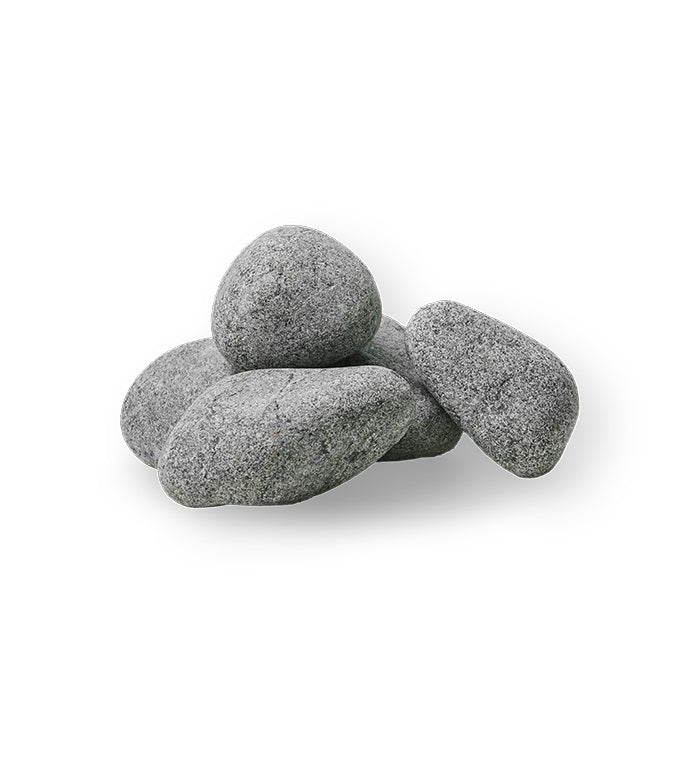

Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
INCLUDES:
HIVE Mini 10.5kW Sauna Heater
- 10.5kW Sauna heater
- Adjustable legs
- Installation and Operation manual
- 5-Year limited warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Stones 24
- 132 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
SPECIFICATIONS:
| Heater | Hive Mini 10.5 |
|---|---|
|
Kilowatt Rating |
10.5kW |
|
Minimum Cubic Feet |
353 CF |
|
Maximum Cubic Feet |
706 CF |
|
Heater Weight |
35.3 lbs |
|
Shipping Weight with Sauna Stones |
365.3 lbs |
|
240V, Single Phase Amperage |
43.75 Amps |
|
Elements Required |
3 |
|
Circuit Breaker |
50 |
|
Wire Size AWG |
6 |
|
Diameter |
18.11" |
|
Height |
29.5" |
| Controller | UKU |
|---|---|
| Minimum Temperature Setting | 104 F |
| Maximum Temperature Setting | 230 F |
| Shipping Weight | 20 lbs |
| Console Dimensions | |
| Width | 2.2" (55mm) |
| Depth | 0.9" (22mm) |
| Height | 4.1" (105mm) |
| Main Module Dimensions | |
| Width | 3.5" (90mm) |
| Depth | 2.3" (58mm) |
| Height | 5.6" (142mm) |
| Display Panel Cable | |
| Length | 9.8 ft |
| AWG | 22 |
| Temp Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
| Door Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
