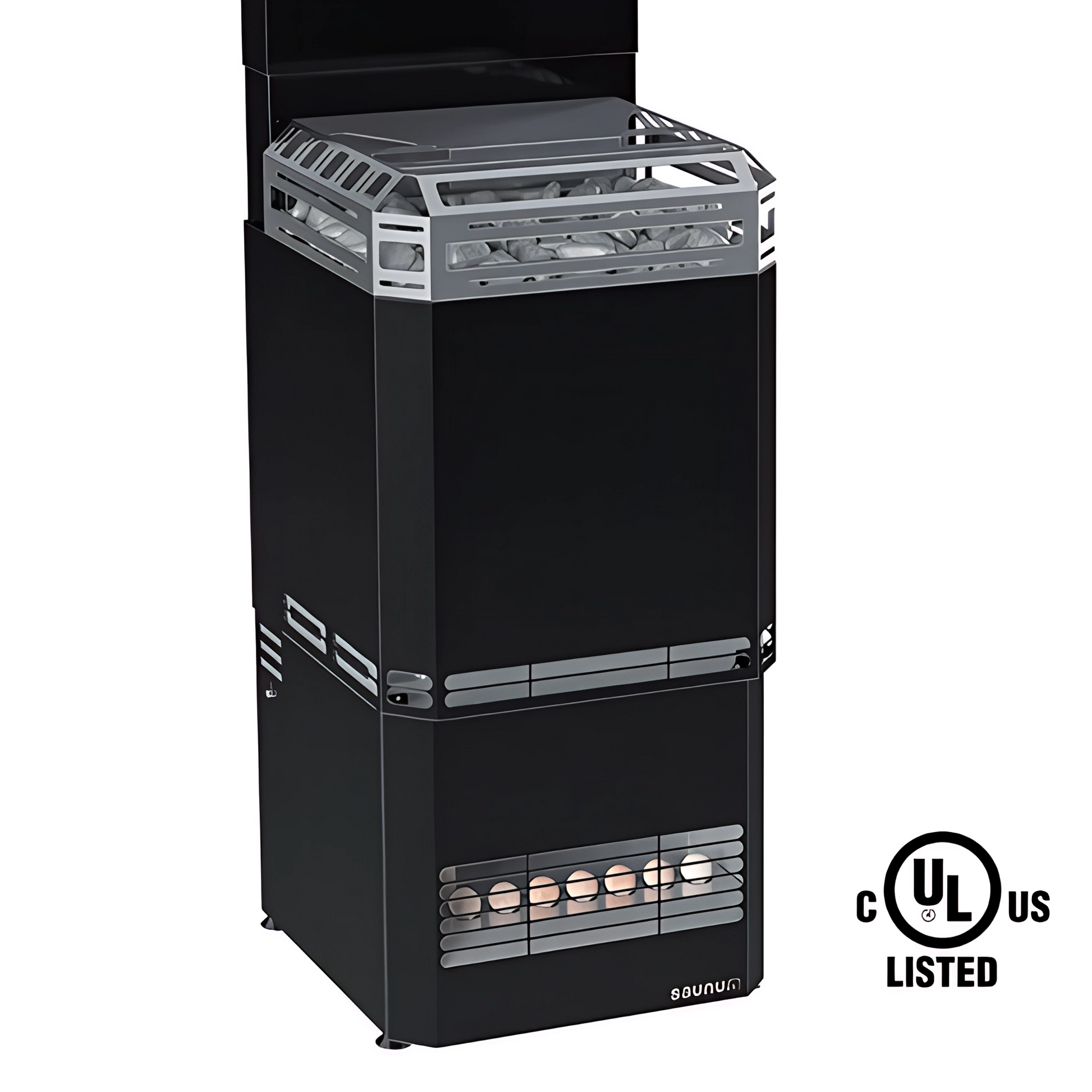

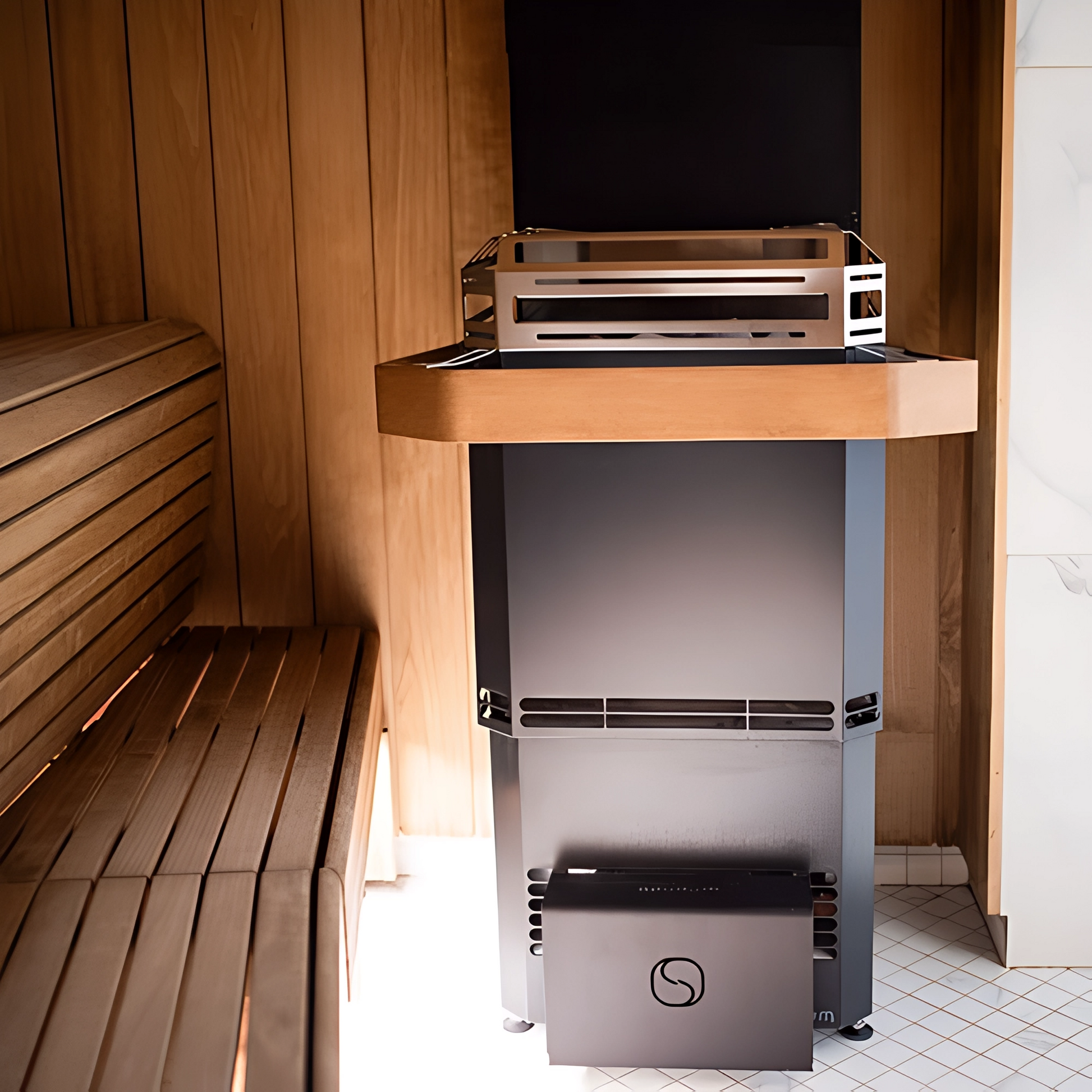

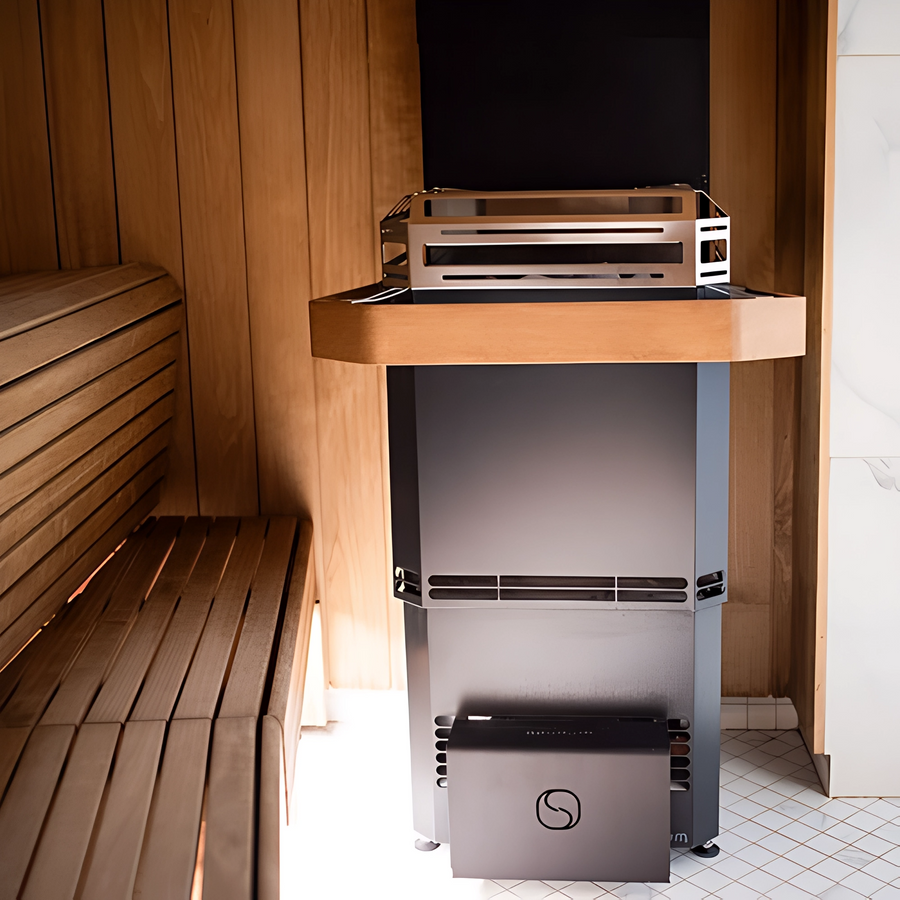

Air L 13 Sauna Heater
- Revolutionary Air Mixing Technology – No more cold feet! No other sauna heater has Saunum's patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistent from head to toe.
- Scandinavian Design – With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Greater stone capacity results in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 198 pound stone capacity.
- Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
- Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.
- UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For sauna rooms from 317 to 565 cu. ft.

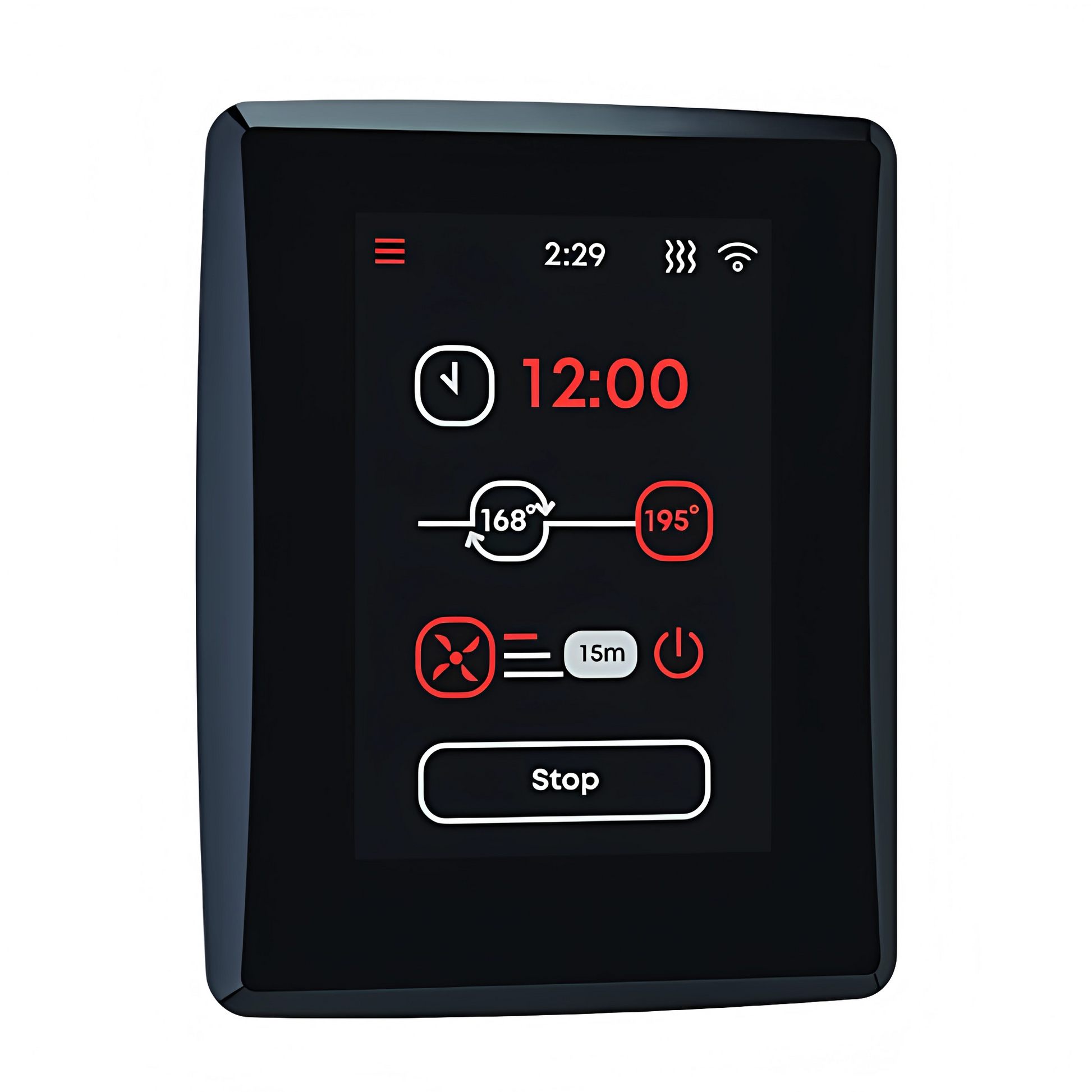

AirIQ Wi-Fi Control
- Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
- Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
- Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
- Classic Nordic Steam Sauna
- For temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
- Humid Steam-Rich Sauna
- For temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
- Mild, Relaxing Sauna
- For temperatures from 104°F - 131°F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
- AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
- Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
- Modbus integration for smart home connection
- Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app
- Sauna is Ready
- Heating Status
- Door is Open
- Overheating Protection Applied
- Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
- Outside sauna room installation
- Screen lock
- Child safety lock
- Temperature sensor
- Door sensor

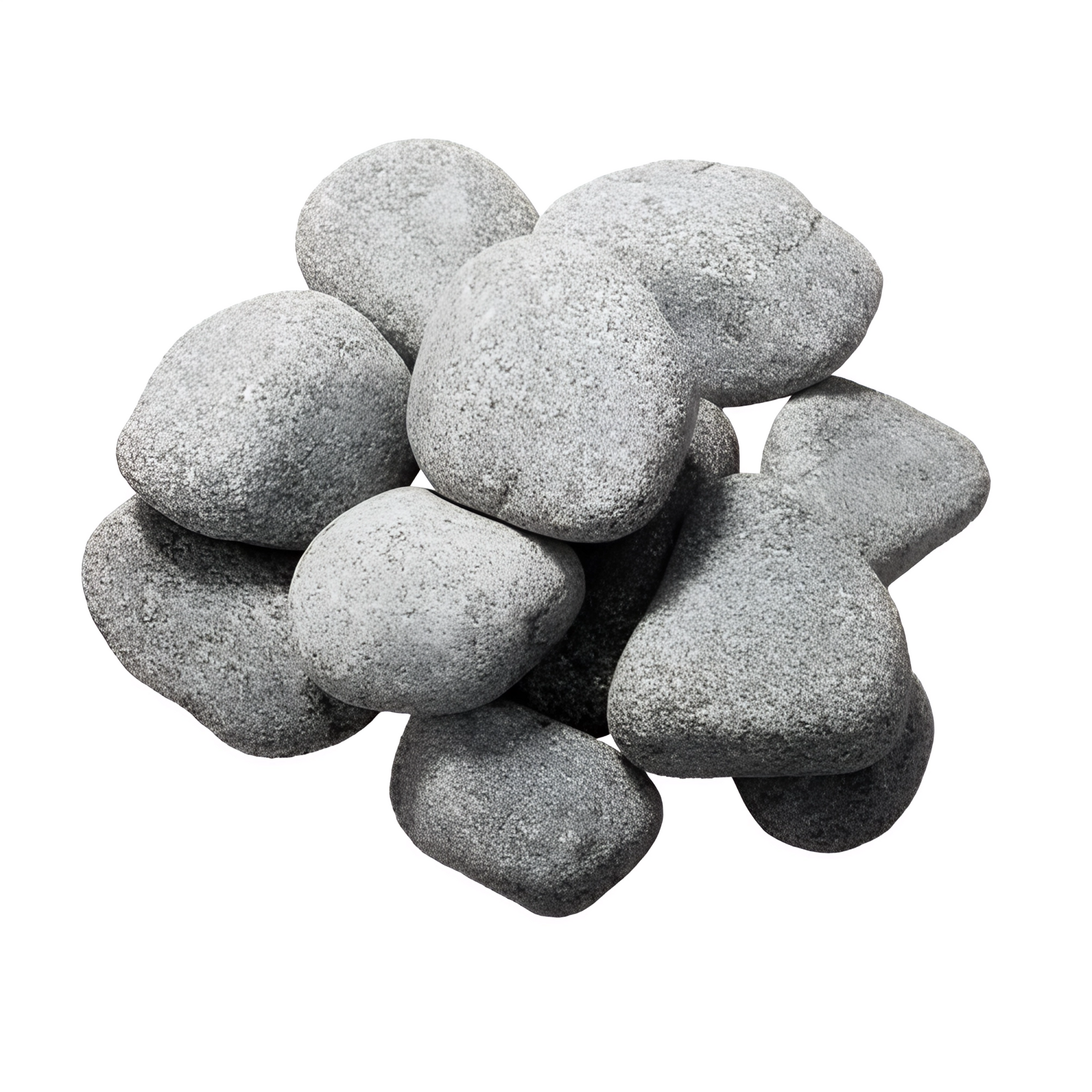

Sauna Stones
- High-quality olivine diabase raw stone
- Rounded, pre-washed, and ready to use
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)

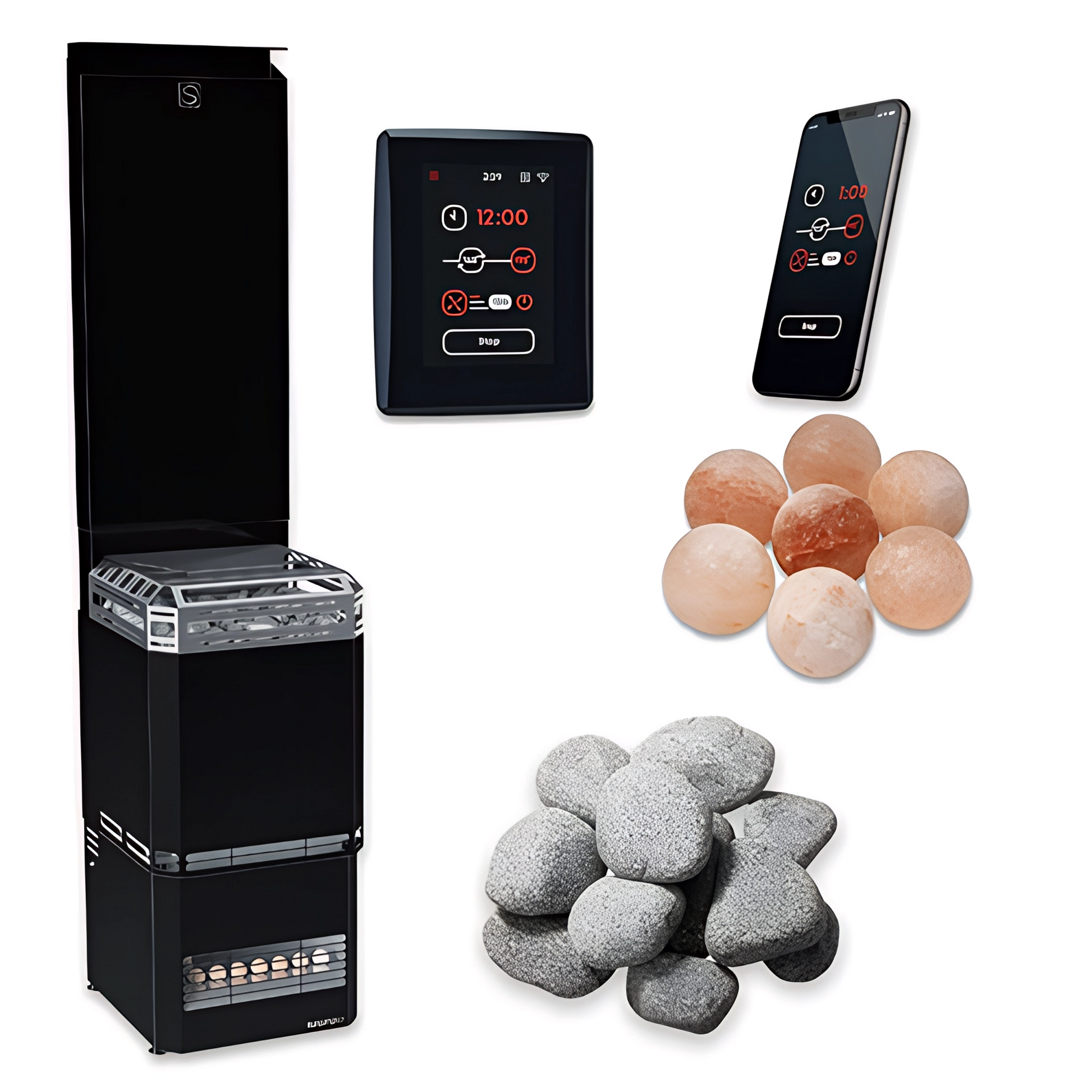

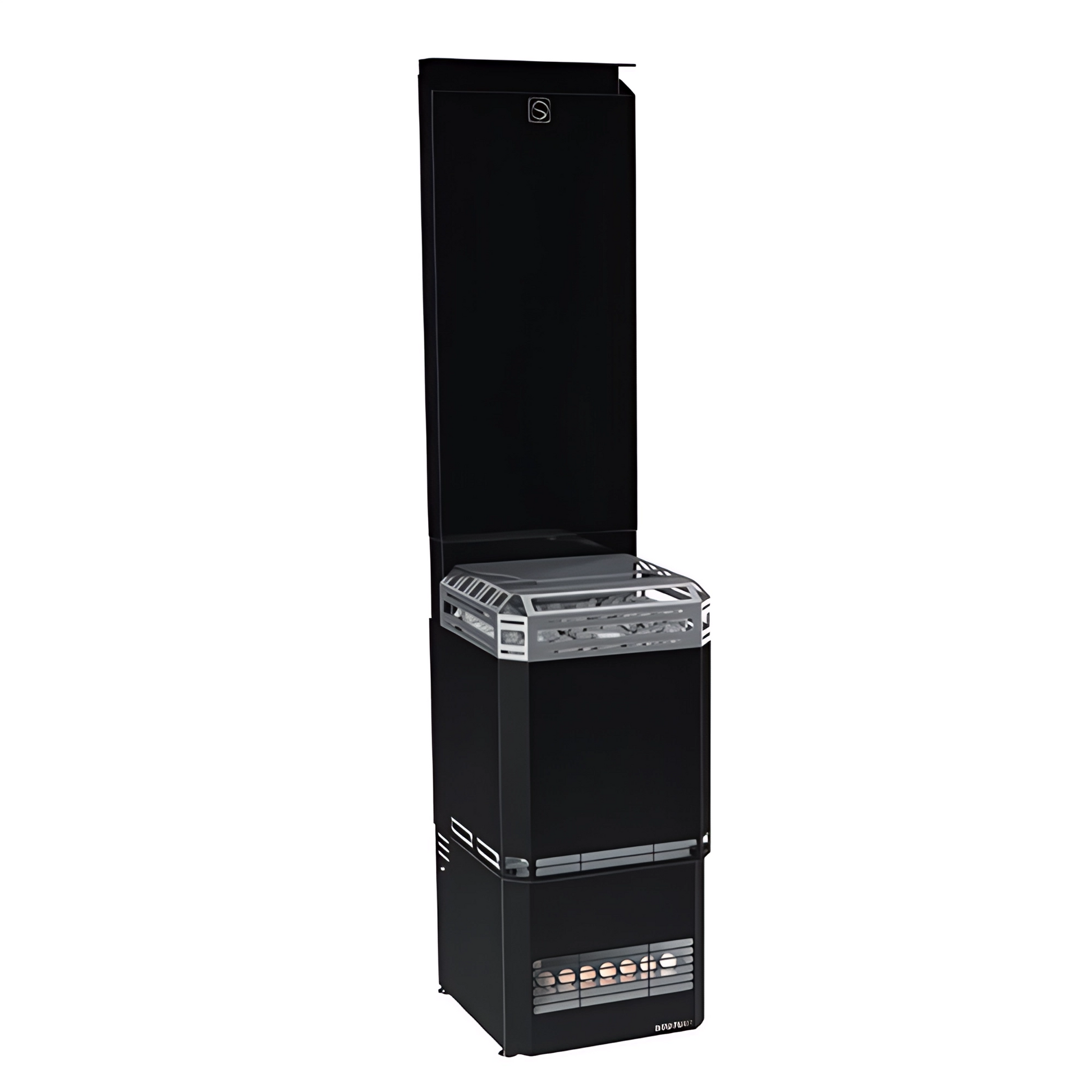

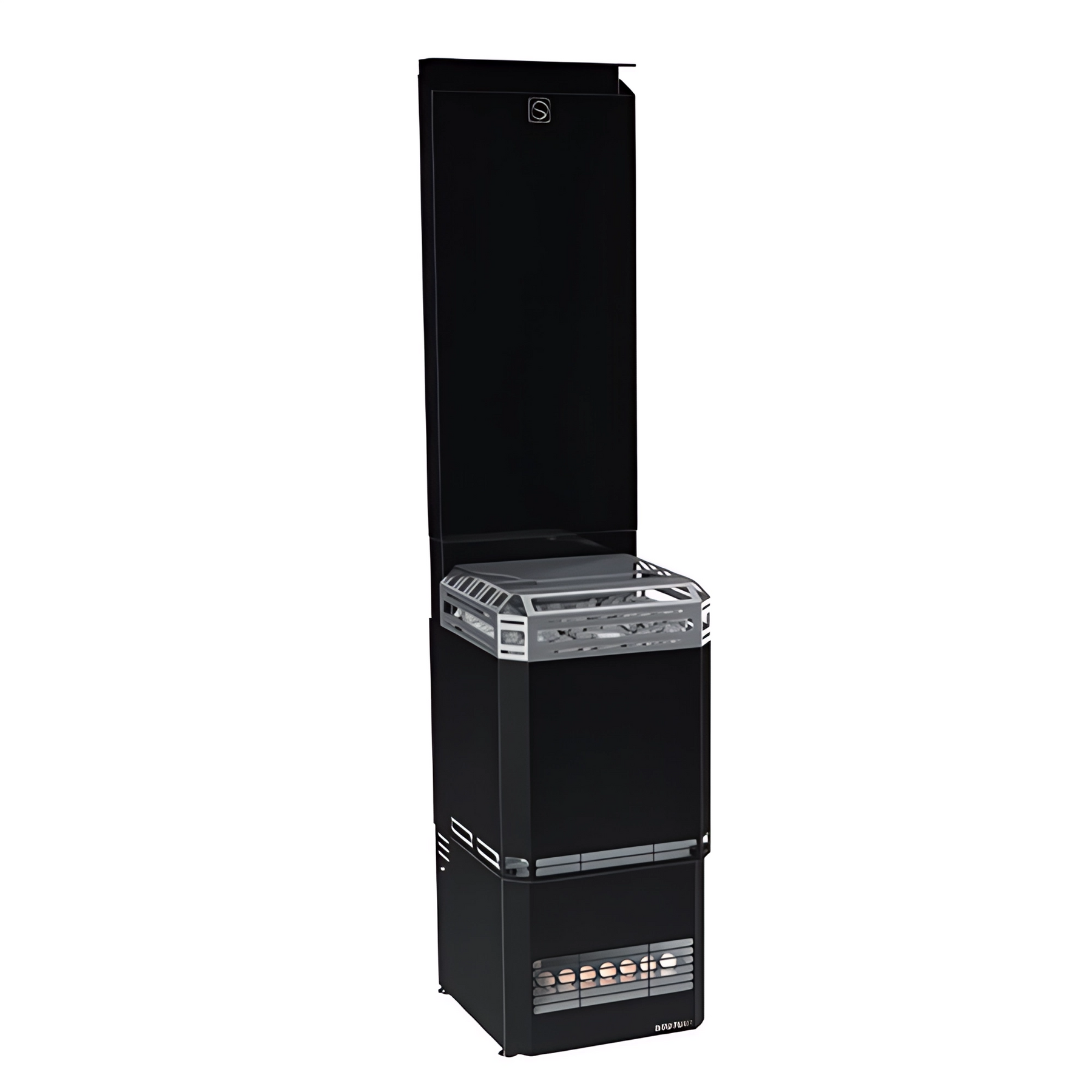

Air L 13 Sauna Heater
- 13kW Sauna Heater

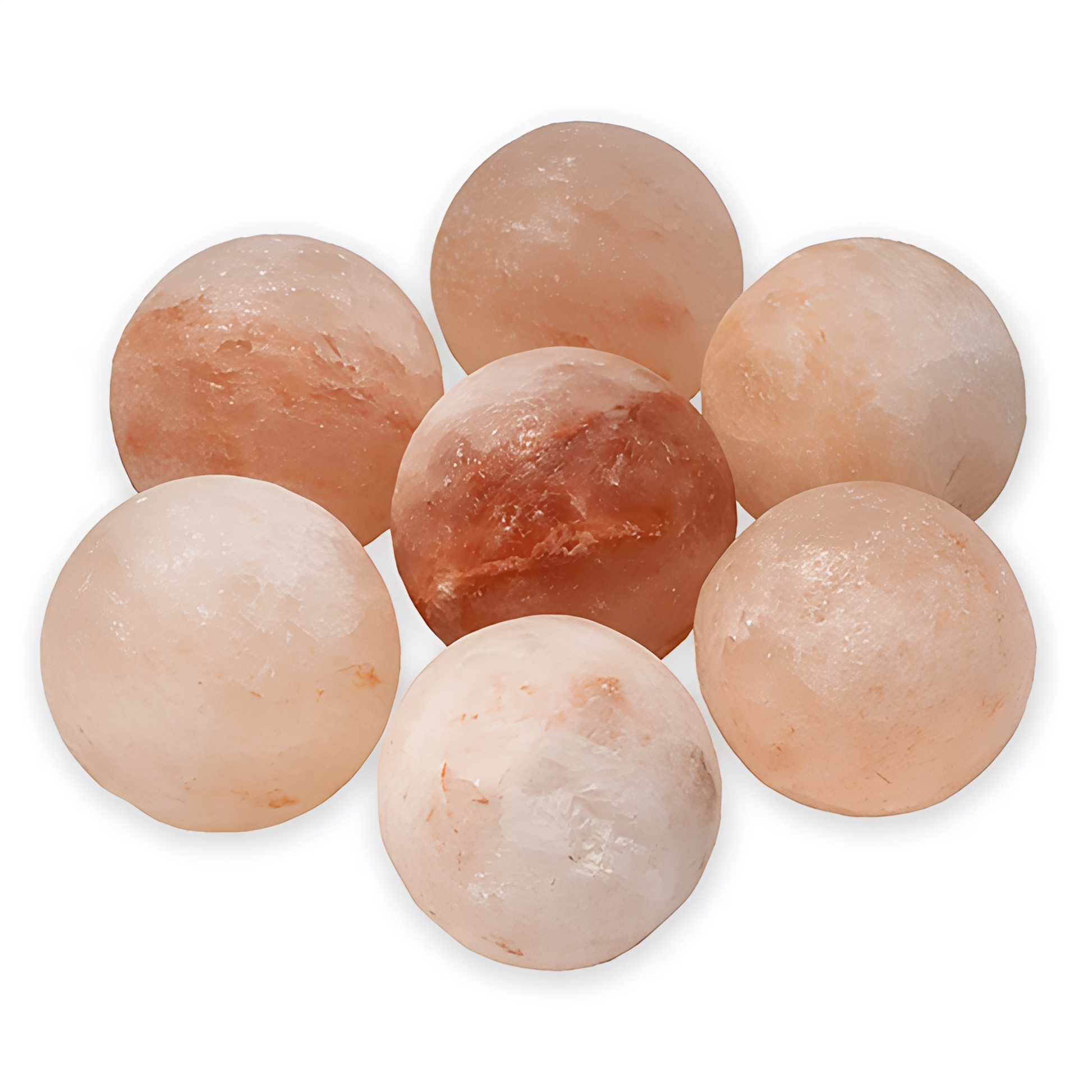

- Himalayan Salt Spheres (7)
- Himalayan Salt Tray
- Hot Air Intake Cap
- Hot Air Intake

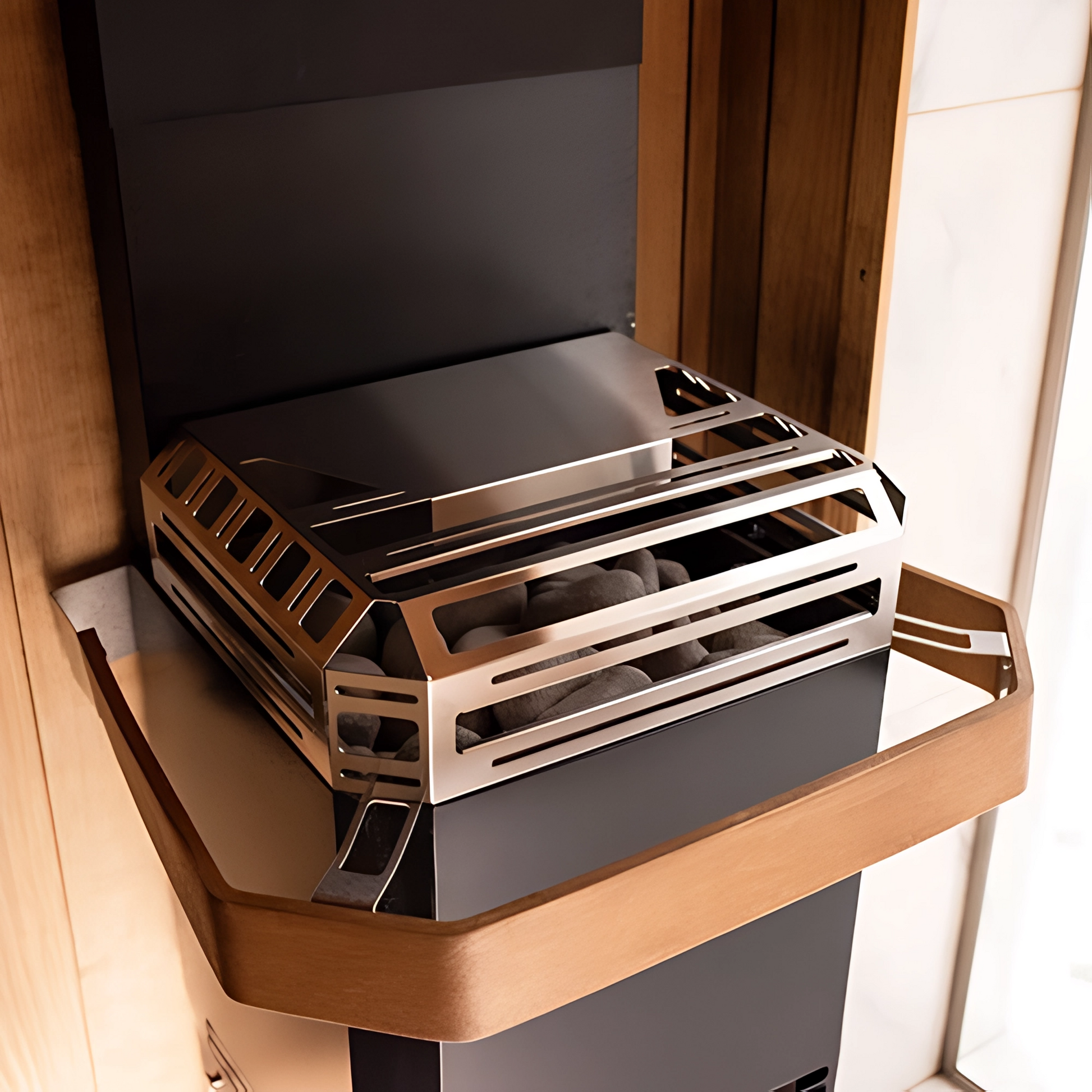

- Stone Basket
- Air Outake Grille
- Cool Air Intake Valve
- Protective Grill
- Temperature Sensor
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use)
AirIQ Wi-Fi Control
- Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
- Wall Mounting Plate and Fasteners
- Power Unit
- Door Sensor Magnet
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
- 198 lbs of 2" to 4" (5-10 cm) Round Sauna Stones
Model | AIR L 13 PKG |
Heat Equalizing System |
|
Model | AIR L 13 |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
Ceiling Hot Air Intake | 17.72" x 4" (450.09 x 101.6mm) |
Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8mm) Off Floor |
Cool Air Intake Size | 2" x 2.75" (50.8 x 69.85mm) |
Blended Air Output | 4.31" x 14.13" (109.47 x 358.9mm) |
Himalayan Salt and Aroma Tray Type | Removable, Slotted |
Himalayan Salt and Aroma Tray Size | 16.5" x 4.5" (419.1 x 111.76mm) |
Sauna Heater System |
|
Model | AIR L 13 |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Room Size | 317-565 cu.ft. |
Wattage Rating | 13000 |
Operating Voltage | 240V |
Phase | Single |
Amperage | 54A |
Circuit Breaker | 70A |
Wire Size to Power Unit | (2) #6 + N + G |
Minimum Ceiling Height | 79" (2007mm) |
Stone Capacity | 198 lbs (90 kg) |
Stone Size | 2" - 4" (5-10 cm) |
Heater Width | 19" (483mm) |
Heater Depth | 18.1" (460mm) |
Heater Height (Including Telescopic Air Intake) | 72.25-95" (1850-2400mm) |
Heater Weight | 147 lbs (67 kg) |
Shipping Weight with Stones | 345 lbs (157 kg) |
Display Panel |
|
Model | AIRIQ WI-FI |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Type | Digital, Soft-Touch |
Response | Tactile with Haptic Feedback Technology |
Language Selection | 16-Languages |
Wi-Fi Capability | Wi-Fi, App-Based Updates, and Operation |
Notifications | Sauna is Ready, Heater Status, Open Door, and Overheating Protection |
Safety Features | Admin, Screen Lock, Door Sensor, and Overheating Protection |
Color | Nordic Black |
Heat Equalizing Control | 3-Speed Adjustability |
Width | 3.3" (83.82mm) |
Depth | .8" (20.32mm) |
Height | 4.1" (104.14mm) |
IP Rating | IP20 |
Minimum Temperature Setting | 104°F (40°C) |
Maximum Temperature Setting | 194°F (90°C) |
Duration Timer | 1 - 6 Hours |
Display Panel Cable | 4-Conductor Cable (150°C), 20AWG, 15' (475.2 cm) |
Door Sensor and Cable Assembly (Included with Heater) | 2-Conductor Cable (150°), 20AWG, 9.83' (299.62 cm) |
Door Sensor Probe | 1"L x .24"Diameter (25 x 6mm) |
Operating Temperature Range | -4 - 145°F (-20 - 62°C) |
Programmability | Weekly Scheduling with 3 Programmable Sessions |
Temperature Settings | Fahrenheit or Celsius |
Region Settings | North American and European Versions |
Room Temperature Sensor (Included with Heater) | Pre-Mounted with Integrated Cable (150°C), 9.5' (289.56 cm) |
